ARMASPEED Aero Kits 碳纖維空力套件碳纖維空力套件

Carbon fiber aero kits for the Toyota GR Yaris, the Toyota Supra A90 and the Porsche Taycan, among other cars. Each kit had to fit the car closely, achieve the intended carbon fiber finish, and meet production requirements. I handled form design and development management, from vehicle scanning to first-sample approval.Toyota GR Yaris、Toyota Supra A90 與 Porsche Taycan 等數款碳纖維空力套件，需同時兼顧車體密合度、碳纖維外觀與量產需求。由我負責造型與開發管理，從車體掃描一路做到首樣簽核。

My role角色

Form design and development management, including on-car fit checks, jigs and detailed specification definition.負責套件造型與開發管理，涵蓋實車試裝、治具與細節規格定義。

Methods方法

Used 3D scans to reconstruct the car body, then developed the kit’s form and specifications.以 3D 掃描逆向建構車體，再發展造型並制定產品規格。

Outcome結果

Several kits went into production and on sale; yield tracking fed the next round.多款套件量產上市，並將良率追蹤納入後續開發改善。

01 · Development Flow01 · 開發流程

From concept to launch從概念到上市

Each kit had to fit the original car and be repeatable in production. We began with a body scan, tested samples on the car, and refined the mating surfaces. The approved requirements then went into specifications for the production team.套件必須貼合原車，也要能穩定製造。開發從車體掃描開始，經過樣品試裝與貼合面修正，最後將確認過的要求寫入規格書，交接給生產端。

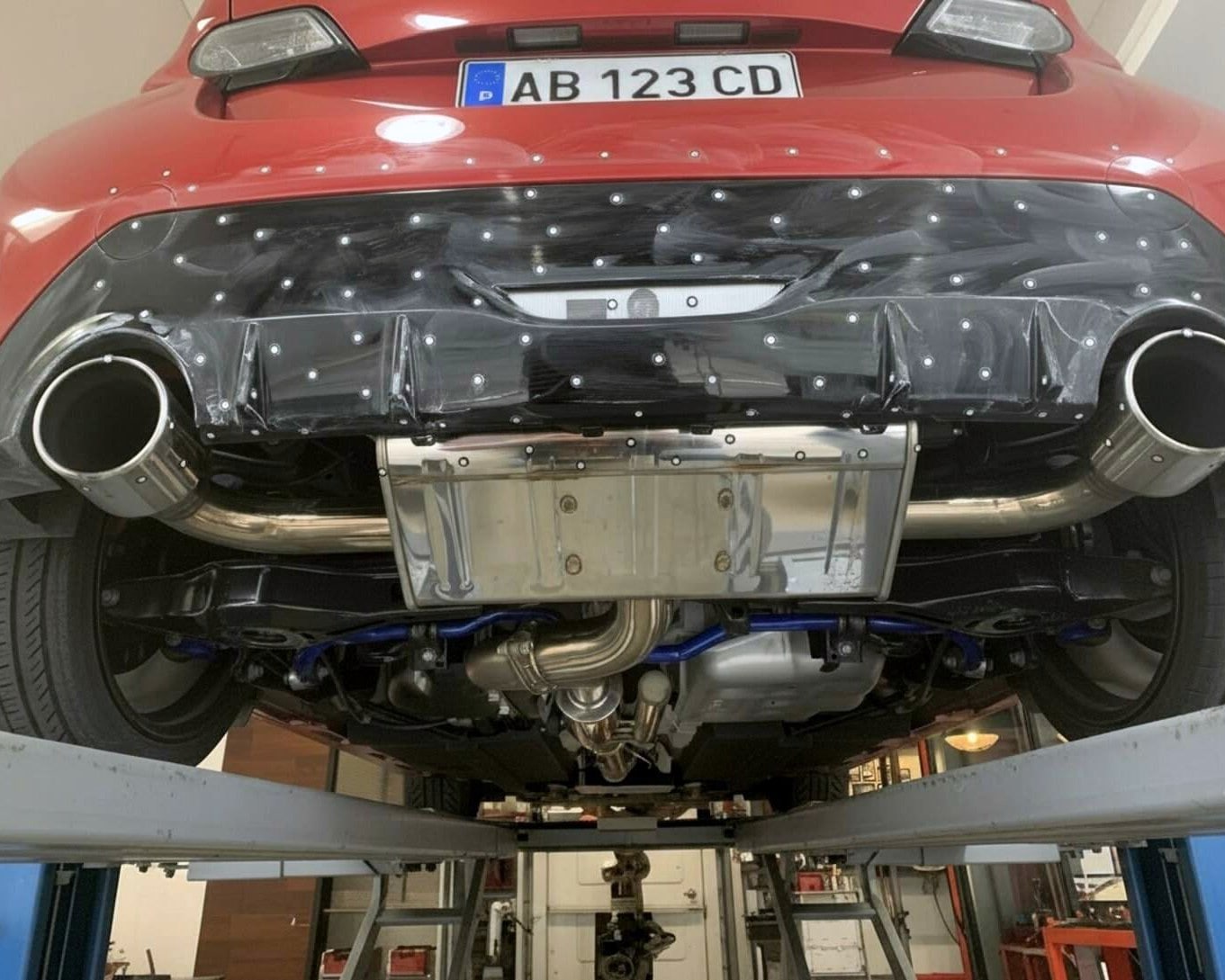

Photogrammetry tracking dots applied to the rear of a red car for 3D scanning.

01 · Vehicle scan A high-precision 3D scan of the donor car, reverse-engineered so nothing on the body gets lost.01 · 車體掃描為原車進行高精度 3D 掃描與逆向工程，記錄車體的形狀與細節。

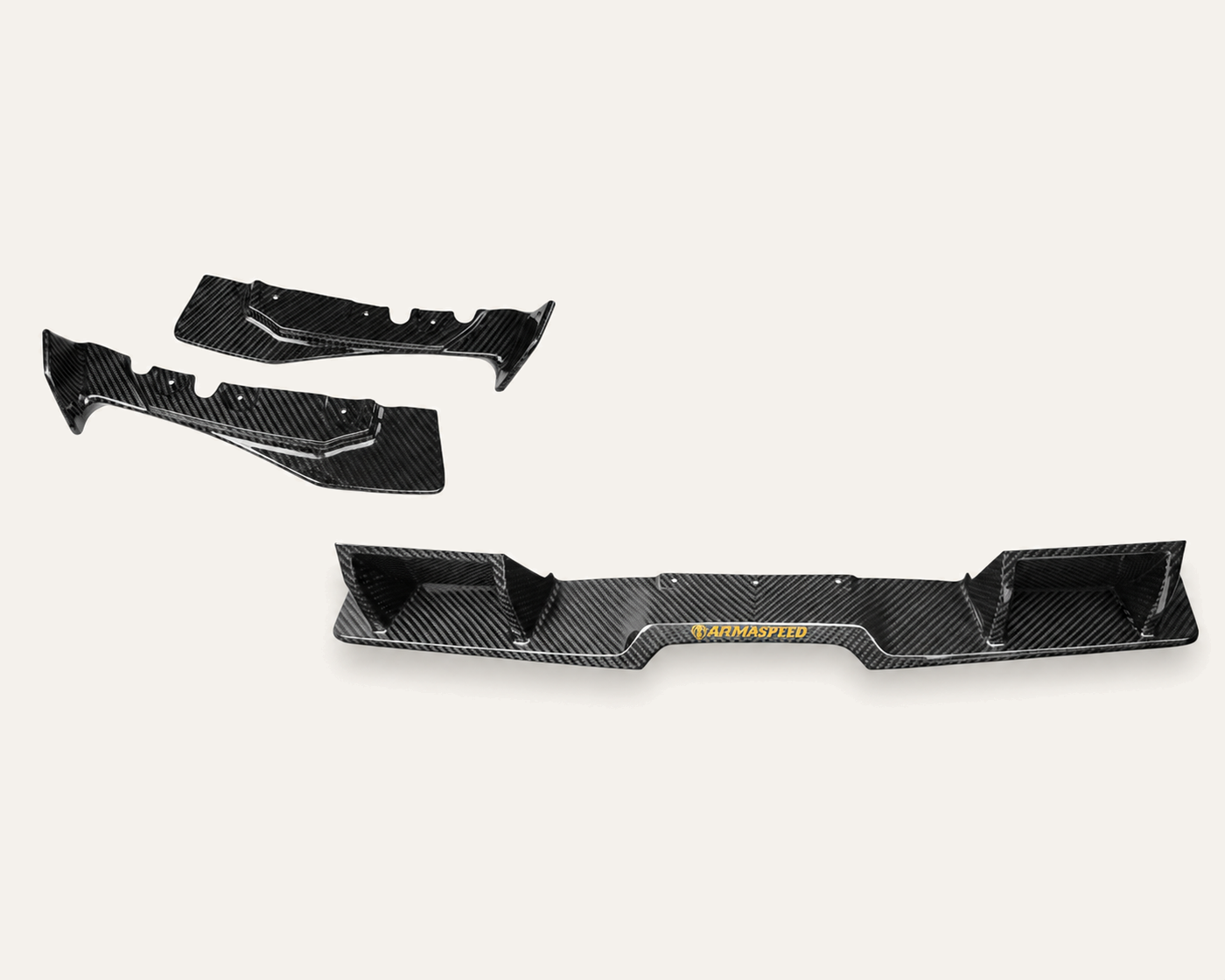

First carbon fiber samples of three rear diffuser pieces, in studio lighting.

02 · Design and samples I developed the form using the scan data. Carbon fiber layup and high-pressure curing produced the first test sample.02 · 設計與樣品在掃描圖資上發展造型，再經碳纖維工藝等製程，試做出首件測試樣。

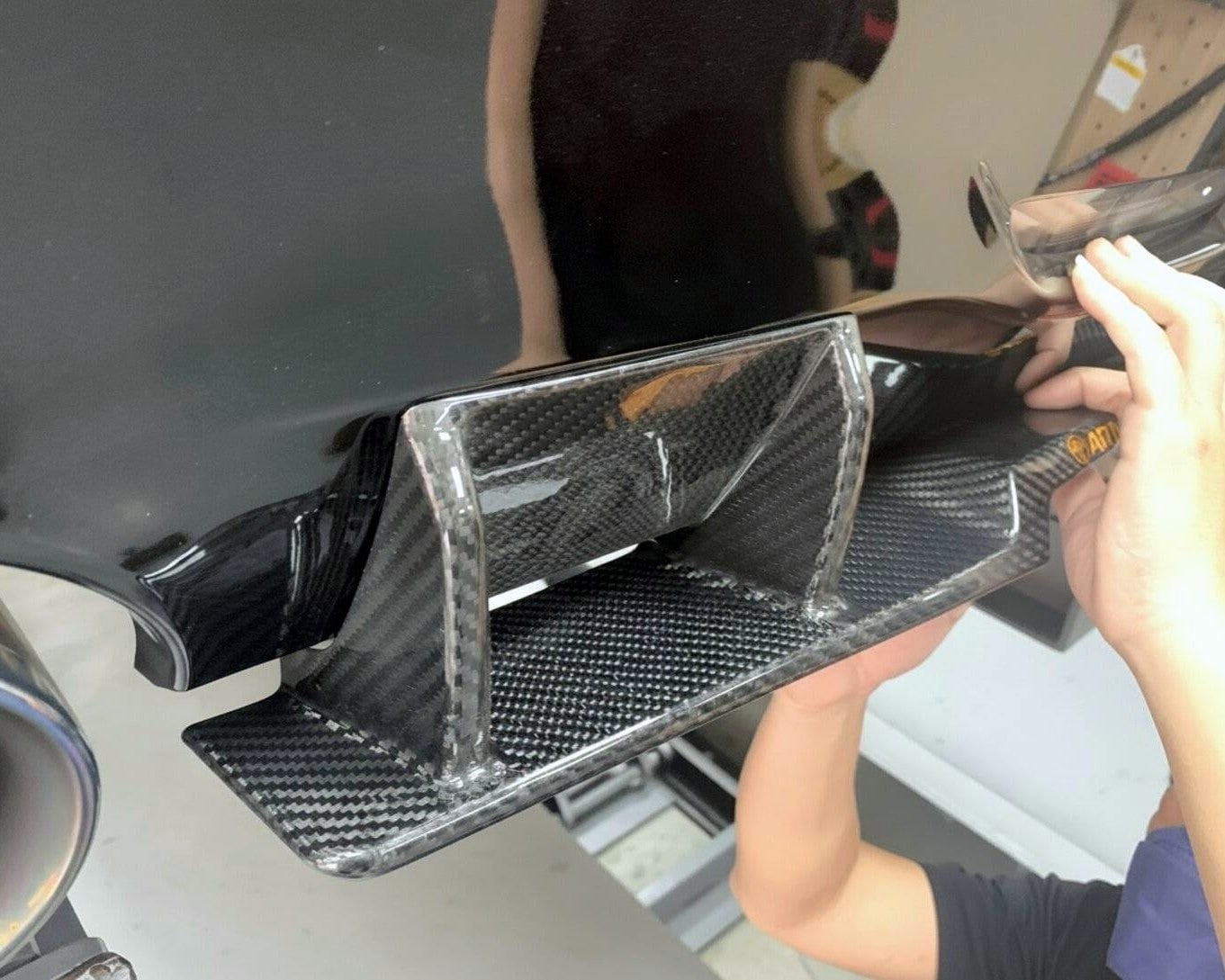

Hands fitting a carbon fiber piece against a black car body to check fit.

03 · On-car fit checks Test samples on the car and refine the mating surfaces until clearances and fit meet the requirements.03 · 實車安裝驗證在實車上反覆測試並修正貼合面，確保無干涉，直到密合度達到要求。

Red Toyota GR Yaris with the finished kit installed, parked at golden hour.

04 · Release I helped build the trim and inspection jigs, wrote the product spec sheet, and handed it to administration and production for release.04 · 產品發布協助製作裁切治檢具，制定品項規格書並移交行政與生產部門發布。

02 · Material02 · 材料

A work of art in motion行動的藝術品

The carbon weave is part of the design. I specified its direction to suit the contours of each component, with molding, precision finishing, and multiple clear coats completing the surface.碳纖維織紋也是造型的一部分。我依各部件的輪廓安排紋路走向，再透過成型、精密加工與多道金油塗裝，完成表面的質感。

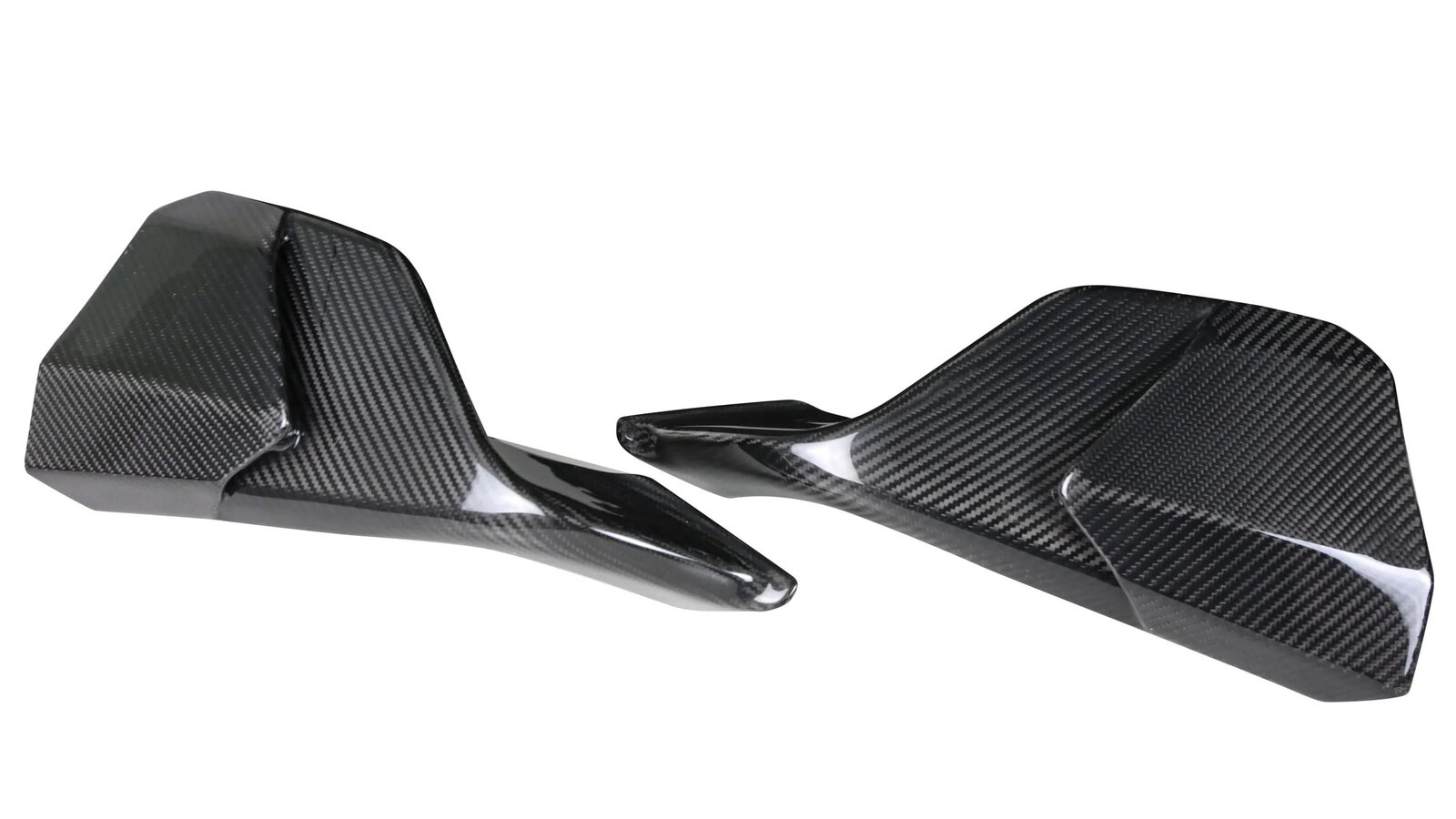

Two carbon-fiber aero components with their woven surface and curved edges visible.

Side skirt weave detail. The 0/45/90° layup direction runs across the visible face.側裙的織紋細節。0/45/90° 的疊層方向橫過可見面。

03 · Selected Work03 · 精選作品

Representative projects代表專案

The three kits below come from ARMASPEED’s premium carbon fiber line. They are the work I am proudest of from those years.以下三套產品皆來自 ARMASPEED 的碳纖維精品線，是我在職期間具代表性的得意之作。

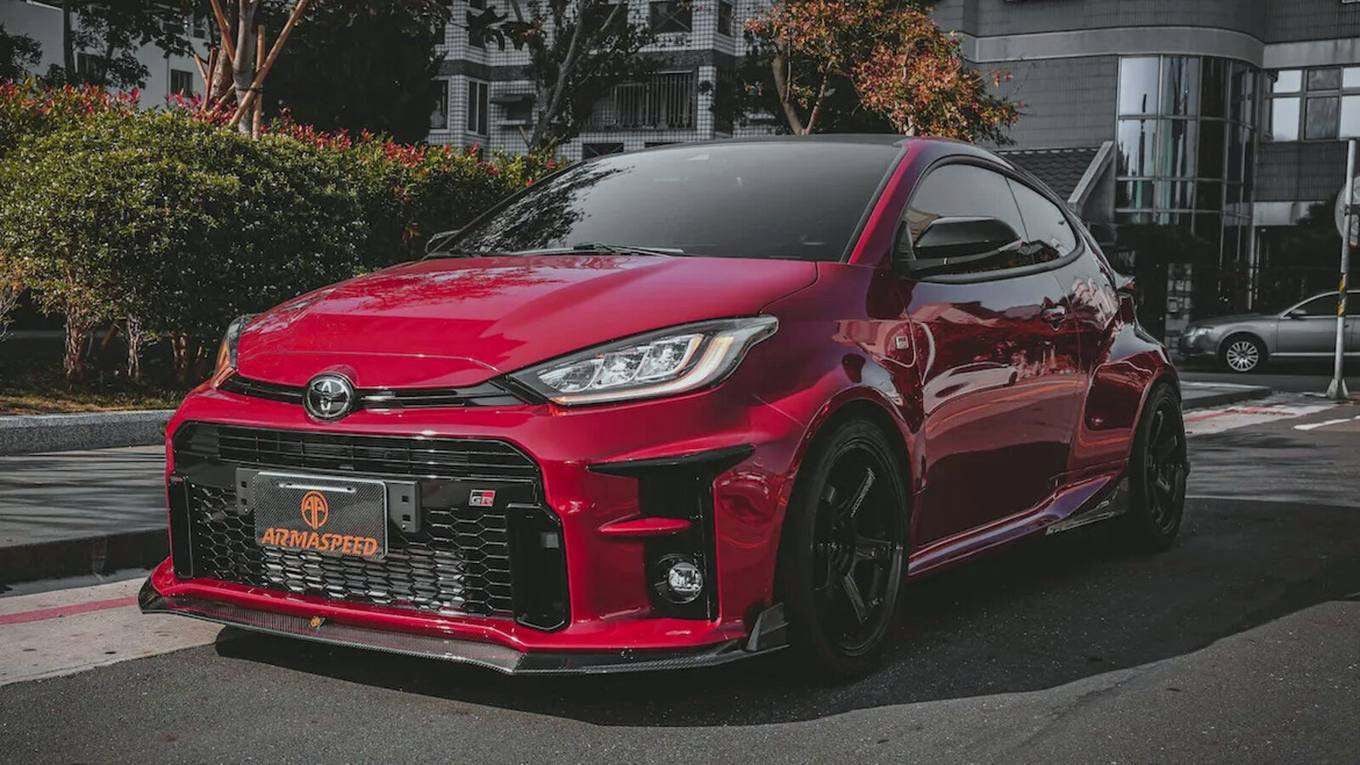

Toyota GR Yaris with the full ARMASPEED carbon kit.

Toyota GR Yaris
Front lip, side skirts, rear diffuser, spoiler.
View product page →Toyota GR Yaris
前下巴、側裙、後下擾流、尾翼。
查看產品頁 →

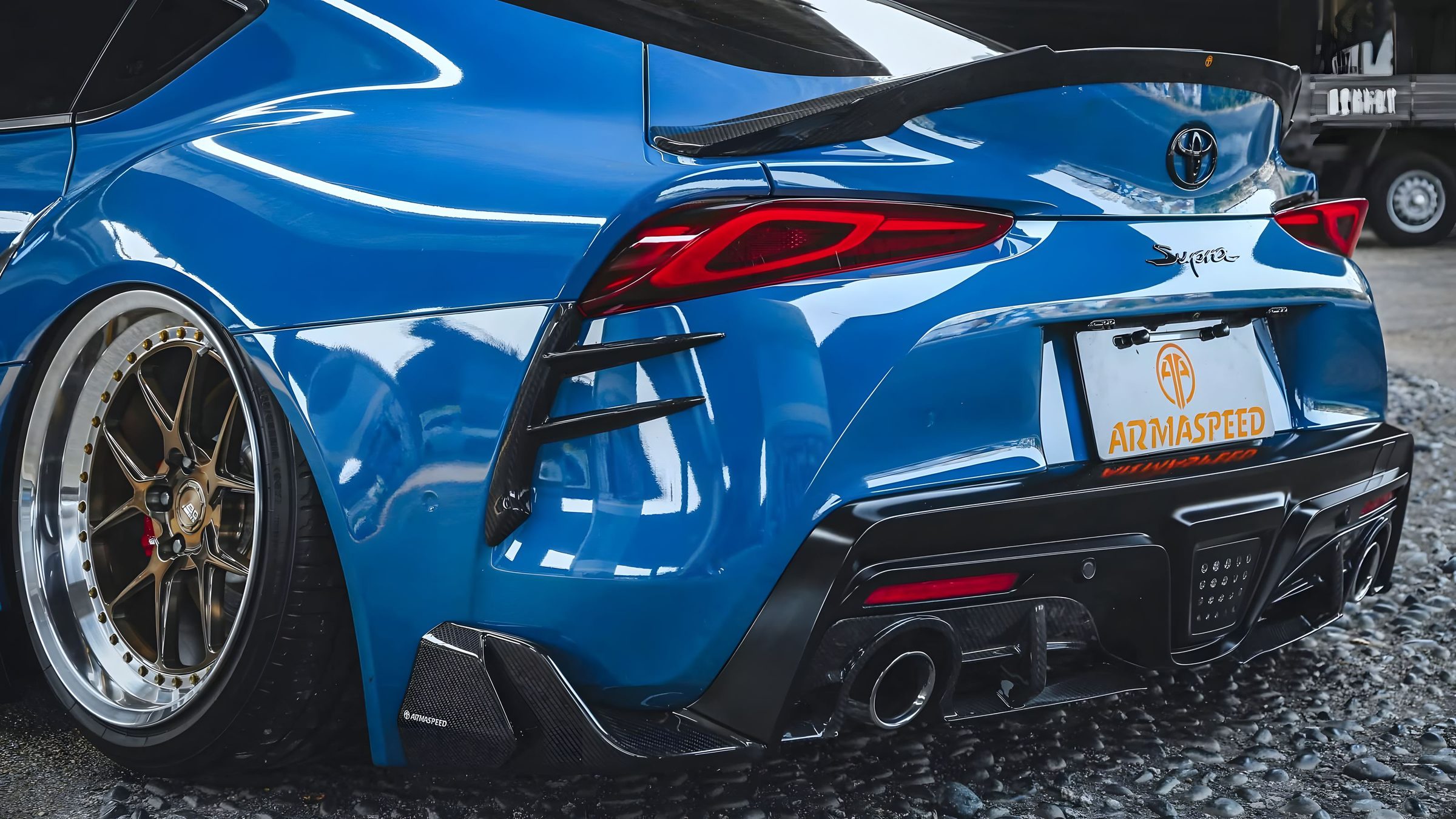

Toyota Supra A90 with the ARMASPEED carbon kit, side view.

Toyota Supra A90 MK5
Front splitter, side skirts, rear diffuser, spoiler.
View product page →Toyota Supra A90 MK5
前定風翼、側裙、後下擾流、尾翼。
查看產品頁 →

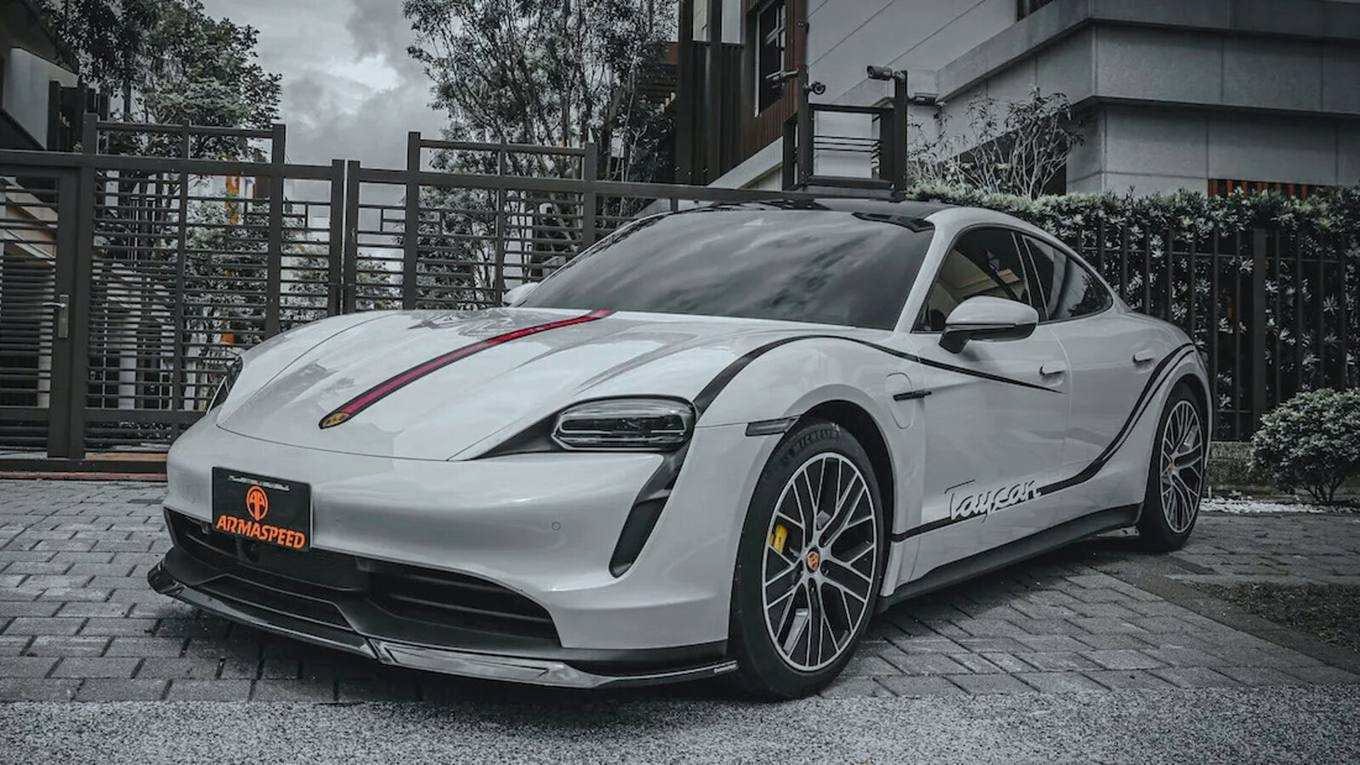

Porsche Taycan with the ARMASPEED carbon kit.

Porsche Taycan
Front lip, side skirts, rear diffuser, spoiler.
View product page →Porsche Taycan
前下巴、側裙、後下擾流、尾翼。
查看產品頁 →

04 · Looking Back04 · 回顧

What this place gave me這裡帶給我的養分

I returned to Taiwan during the pandemic and joined ARMASPEED. It was my chance to work as an industrial designer, something I had long wanted to do, while drawing on my project-management experience. There were anxious waits for delayed molds, and tears when I worried I wasn’t doing well enough as a newcomer. Those memories are still vivid as I put this portfolio together.疫情期間回到台灣後，我進入 ARMASPEED，終於有機會做一直想做的工業設計，也用上了先前累積的專案管理經驗。過程中有模具廠延交的焦慮，也有新人時期擔心自己表現不好而流下的眼淚。整理作品集時，這些記憶仍然很鮮明。

The Volkswagen Golf GTI 8 ABS kit was my first project at the company to go from concept to launch. That experience helped me understand the stages and handoffs involved when I later managed carbon-fiber product development.Volkswagen Golf GTI 8 的 ABS 套件，是我進公司後第一個從概念發想做到正式發表的專案。後來管理碳纖維產品開發時，這段經驗讓我能掌握各階段的工作與交接。

I owe a lot of that to my supervisor. He was strict, and he took the pressure from above onto himself; it never reached us. The kits are still on sale on the company site, and every one of them is proof that I did the work. When I lose my footing I go and look at them, and I can face what is in front of me again.也謝謝當時的主管。他要求嚴厲，卻總是為我們扛下上級的壓力，不曾讓我們直接承受。那些還掛在網站上販售的產品，每一套都是我努力過的證明。有時候迷惘了，我會回去看看它們，然後又有信心面對眼前的挑戰。
